Composite Cables

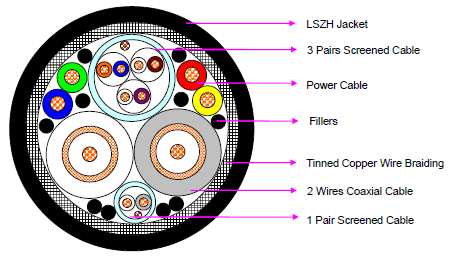

CONSTRUCTION
4 Cores Power Conductor
Conductors: Stranded tinned copper wire 32/0.20mm.
Insulation: LSZH.
Thickness of Insulation: 0.45mm
Diameter of Insulation: 2.20mm
1 Pair Screened Conductor
Conductors: Stranded tinned copper wire 16/0.20mm.
Insulation: LSZH.
Thickness of Insulation: 0.30mm Diameter of Insulation: 1.60mm Twisting: 2 wires twisted to a pair
Screening: Aluminum/Polyester tape with tinned copper drain wire 16/0.20mm.
Overall Diameter of Cable: 3.40mm.
3 Pairs Screened Conductor
Conductors: Stranded tinned copper wire 16/0.20mm.
Insulation: LSZH.
Thickness of Insulation: 0.30mm
Diameter of Insulation: 1.60mm
Twisting: 2 wires twisted to a pair
Screening: Aluminum/Polyester tape with tinned copper drain wire 16/0.20mm.
Overall Diameter of Cable: 5.50mm.
2 Wires Coaxial Cable
Conductors: Stranded bare copper wire 7/0.29mm.
Insulation: Foam Skin PE.
Diameter of Insulation: 3.50mm
Shielding: Bare copper wire braiding 0.13mm diameter
Shielding Coverage: 95%.
Sheath: LSZH.
Thickness of Sheath: 0.80mm
Overall Diameter of Cable: 5.70+/-0.10mm
Element Assembly Filler: PP
Wrapping: Polyester Tape.
Braiding: Tinned copper wire braiding 0.20mm diameter
Outer Jacket: LSZH
Thickness of Outer Jacket: 1.30mm
Overall Diameter of Cable:16.50+/-0.50mm
ELECTRICAL CHARACTERISTICS
4 Cores Power Conductor
Max. Conductor Resistance (1.00mm2): 22 ohms/km
Min. Insulation Resistance: 20 Mohms.km 1 Pair Screened Conductor
Max. Conductor Resistance (0.50mm2): 42 ohms/km
Min. Insulation Resistance: 20 Mohms.km 3 Pairs Screened Conductor
Max. Conductor Resistance (0.50mm2): 42 ohms/km
Min. Insulation Resistance: 20 Mohms.km 2 Wires Coaxial Cable
Max. Conductor Resistance: 42 ohms/km
Min. Insulation Resistance: 10 Gohms.km
Capacitance Impedance: 75±4 ohms
Attenuation: 10MHz: 3.40 dB/100m
50MHz: 7.50 dB/100m
100MHz: 10.80 dB/100m
200MHz: 15.40 dB/100m
500MHz: 27.50 dB/100m
PHYSICAL CHARACTERISTICS
Temperature Range: -40℃ to +80℃
Voltage Rating: 300/500V
Min Bending Radius: 10XOD
OTHER CHARACTERIST
Halogen Free
Low Smoke
Sunlight Resistant
RoHS
Compliant
